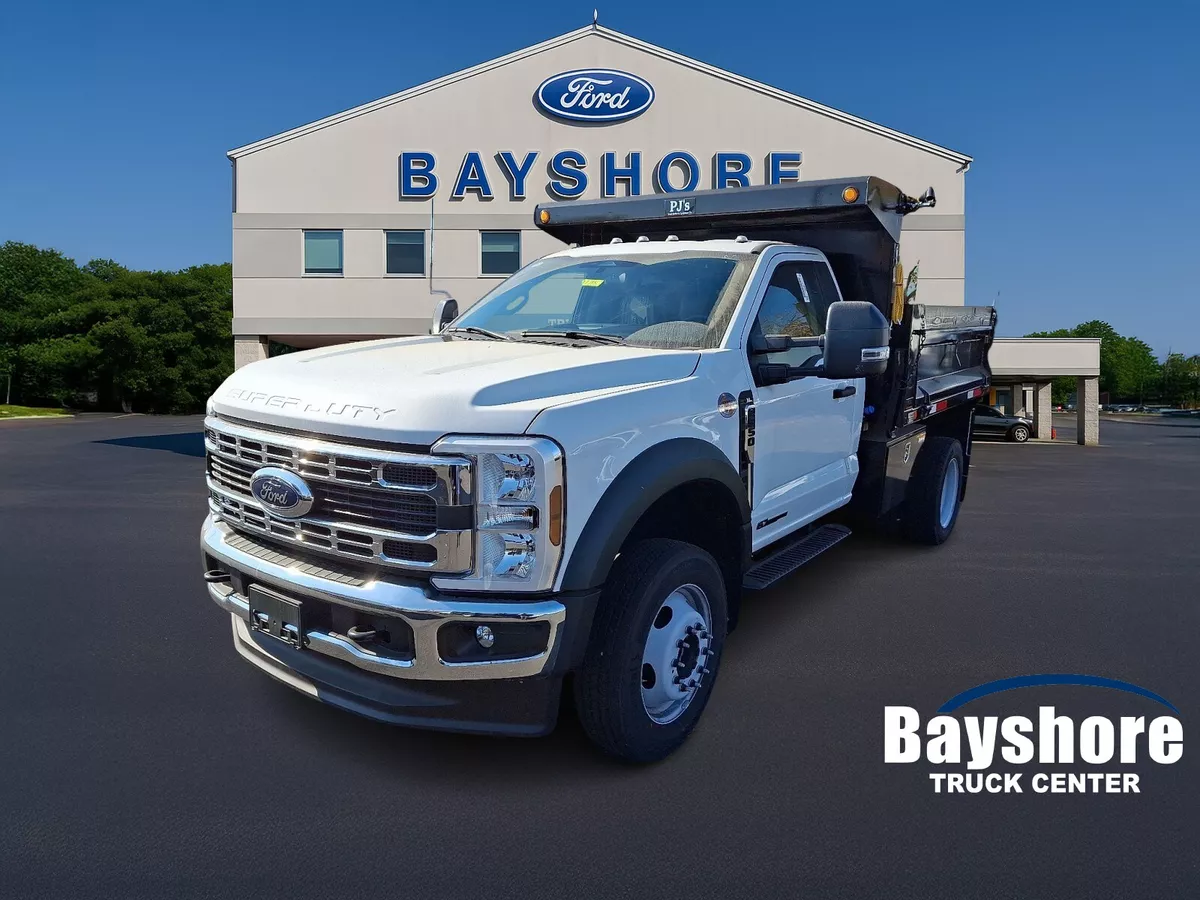

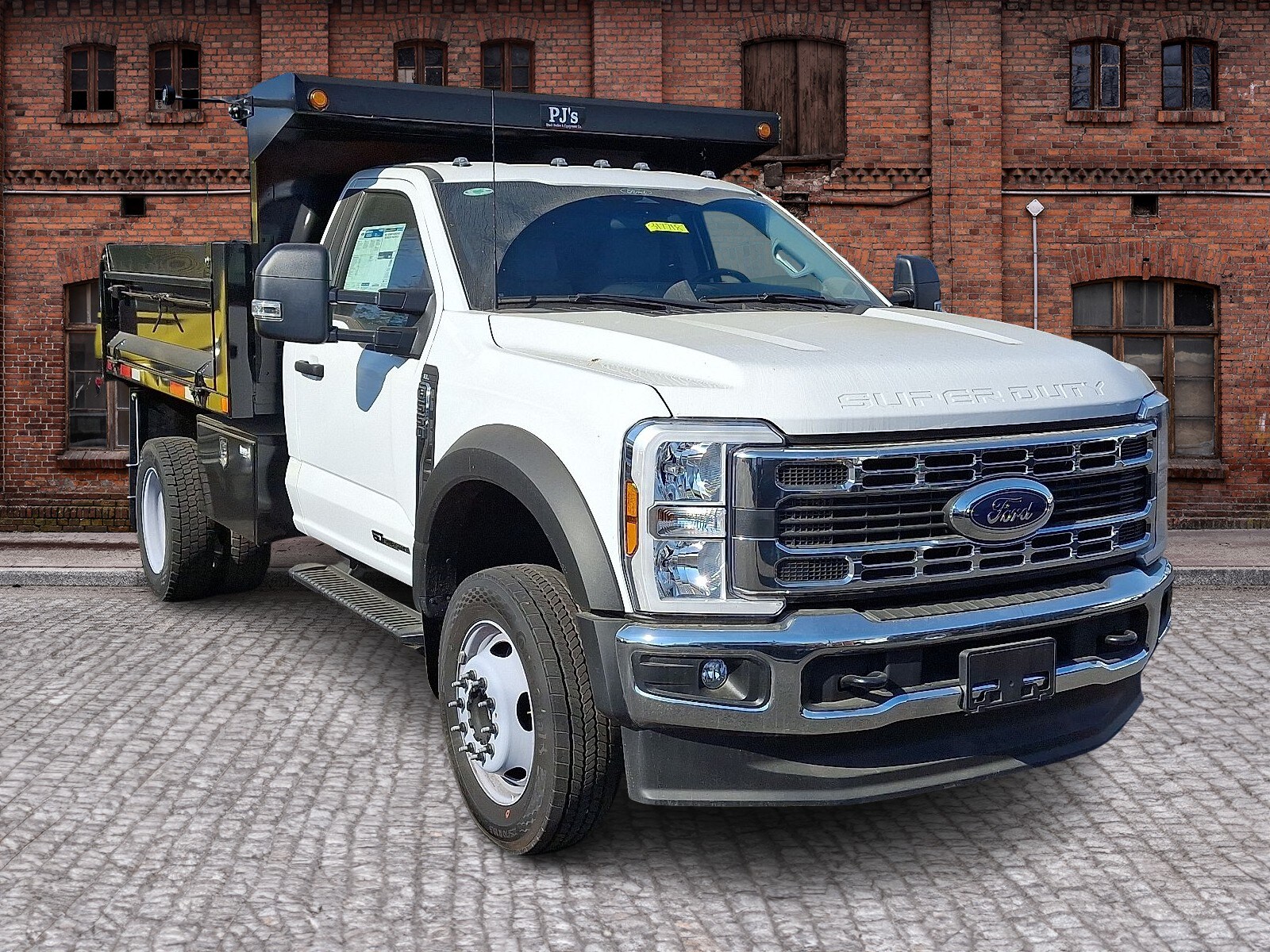

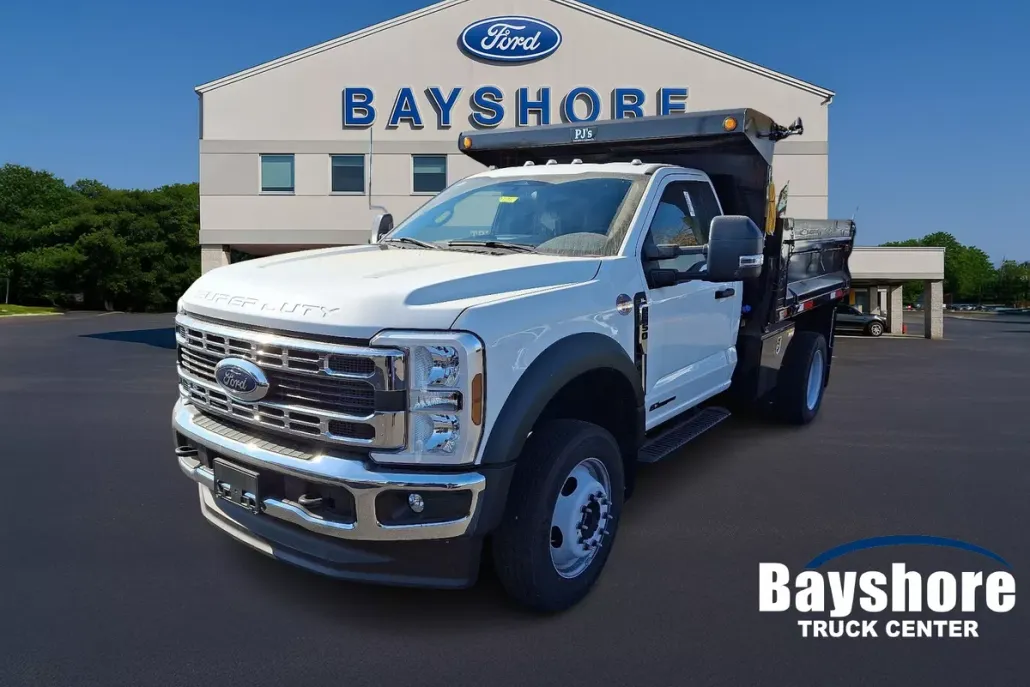

New 2024 Ford F-550 XL

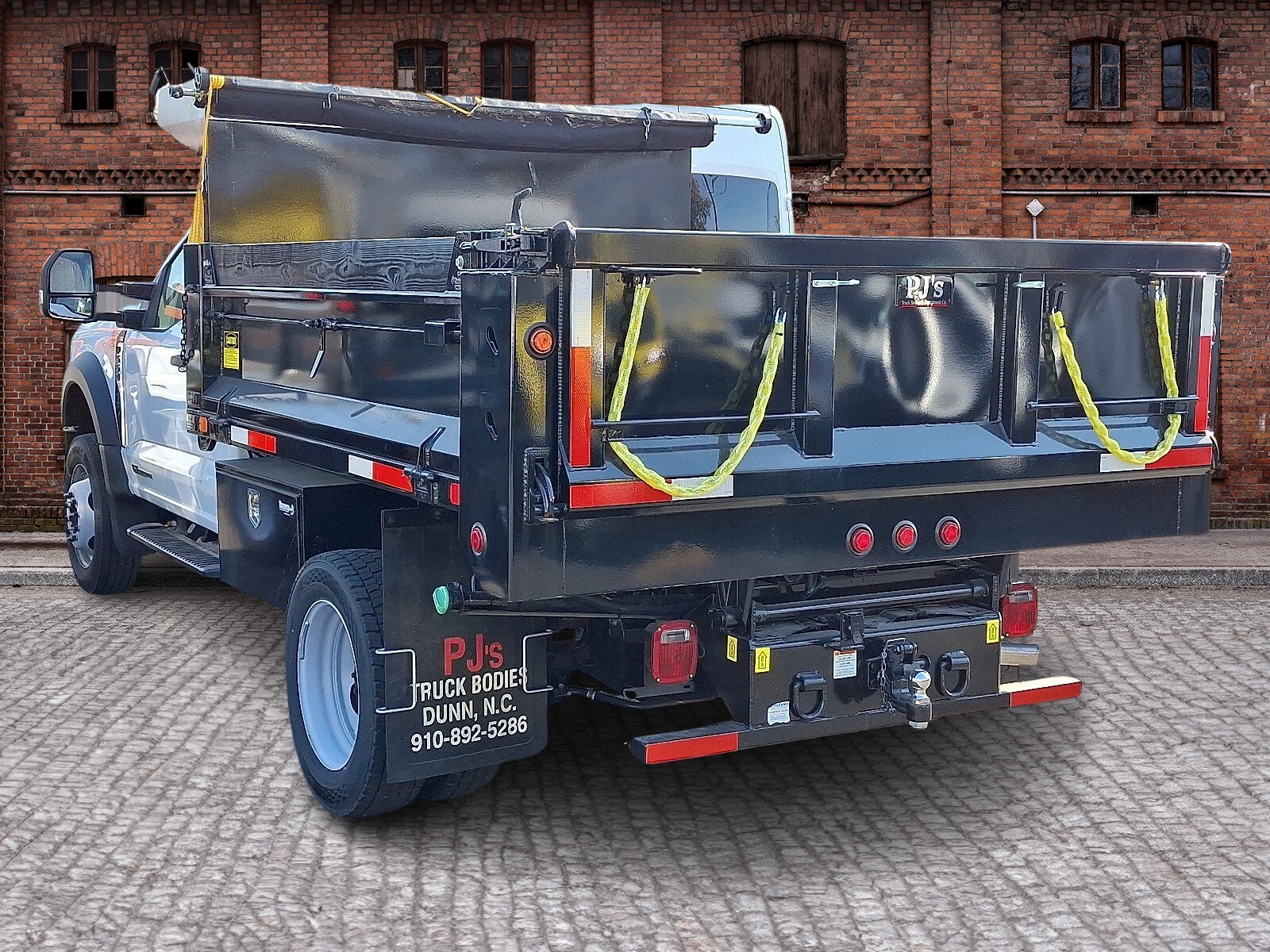

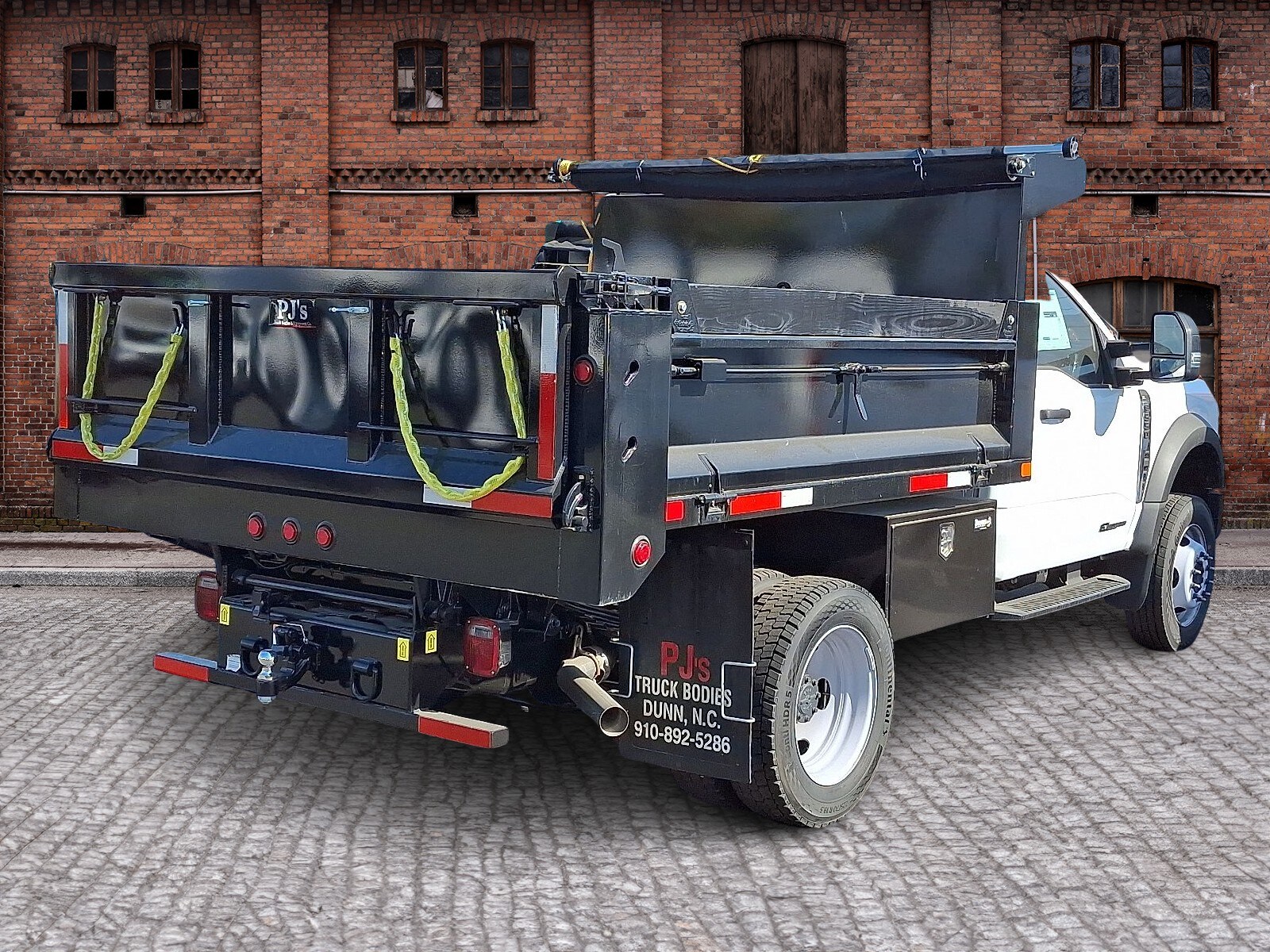

"This body is available in lengths of 8' to 11' in 1' increments. Inside width from side to side is 84". Features: Sides: One piece sides with no welded seams. 10 gauge A607 grade-50 high tensile steel with boxed top rail and fully welded boxed rear corner post. 6" side board gussets with full length rub rails, and box-type sidebraces. Rub rails: Full length 45 degree deflector panels are an integral part of the sides. Floor: 10 gauge two-piece high tensile steel floor with 2" floor to side radius. A607 grade-50 steel. Front wall: 10 gauge high tensile A607 grade 50 steel. Full width integral inverted V-type horizontal bracing. Tailgate: 3 Panel fully boxed 10 gauge high tensile A607 grade 50 steel with boxed horizontal reinforcements and sloping lower deflector. Tailgate is 6" higher than side. Tailgate hardware: Heavy duty: Standard upper hardware is offset cast steel hinge. Lower hook is cast steel: engages tailgate pin from top. Banjo eye keeps tailgate chain in position you select. Lights & reflectors: FMVSS 108 lights are standard, recessed for protection, rubber mounted and shock proof. Understructure: Completely jig built with 3" structural channel crossmembers on 12" centers and 5" structural channel longitudinal. Crossmembers are gusseted and welded to longitudinals.
